Eb7b9 lowers the 9th of to , one fret above its root: Eb, G, Bb, Db and Fb.
That note can fall one fret to the root of a minor home chord. This is a common altered V in a minor cadence, not its only destination.
Also written Eb7(b9), Eb7-9 or Eb7♭9.

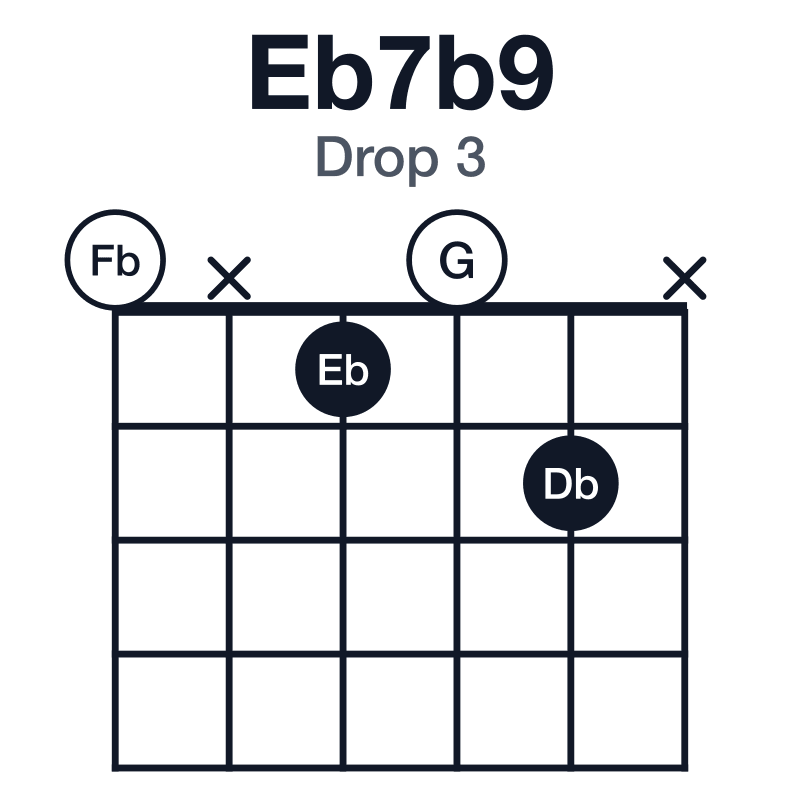

Drop the third voice from the top an octave instead. The wider gap skips a string, so the muted string is part of the shape.
That result, 3–R–5–7, is the shape usually meant by drop 3. Named by its bass note, as the inversions are here, it is the 1st inversion.
More familiar jazz shapes are drop 3 than drop 2.
Eb7b9 is the dominant a minor key builds from its own notes. The flat nine is the key’s flat sixth, a half step above the fifth of Abm, and it falls there.
Listen for: The flat nine falls a half step to the fifth of the minor chord. On the plain seventh chord that string holds the root.
Contains Eb7b9 and adds sharp ninth, sharp eleventh and thirteenth.
