Gdim7 adds to . Its four notes, G, Bb, Db and Fb, divide the octave into equal minor thirds.
Move the shape three frets and it repeats the same pitches under a new root name. That symmetry helps it connect steadier chords from several directions.
Also written G°7, Go7 or G diminished 7.

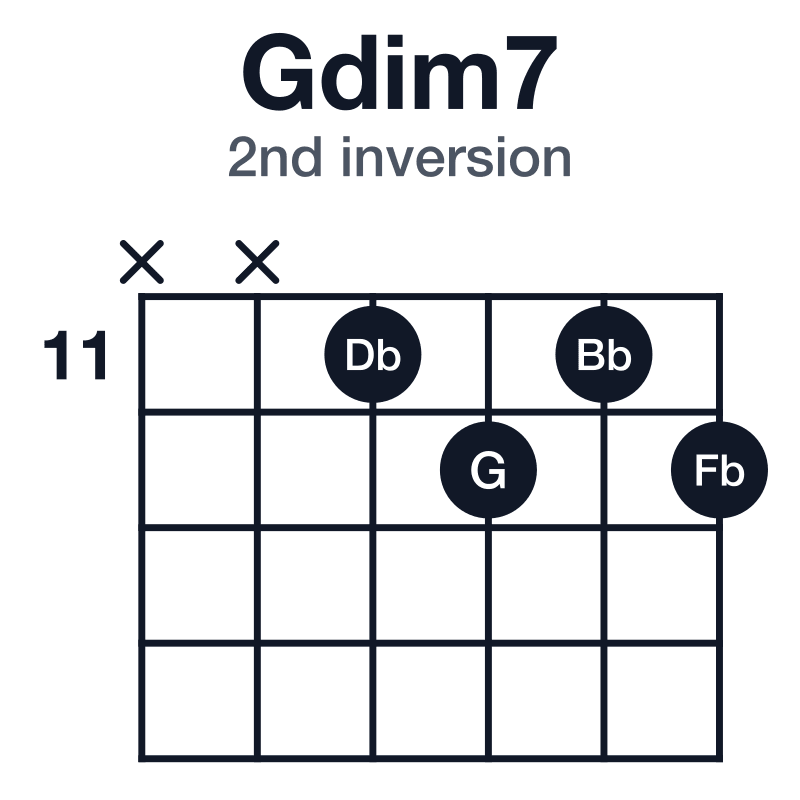

Gdim7 in 2nd inversion puts Db in the bass instead of G, the 5th of the chord. The notes are the same; what changes is what the bass line does, which is most of why you would reach for it — it lets the lowest voice move by step where the root would have jumped.
One of Gdim7’s 10 shapes does this:x-x-11-12-11-12
Gdim7 shares its root with G and slips in between C and the I. It isn’t a new harmony, only decoration: two notes hold, and the rest move by step into the home chord.
Listen for: The IV’s root rises a half step, then another, into the fifth of the I, over a bass that never moves.
Heard in“True Love”“Calendar Girl”“Daydream”
Gdim7 is the dominant seventh flat nine of the chord a half step above it, with the root left out. Any of its four notes can be the one that rises, so it can lead into four chords; between F#maj7 and G#m7 it walks the bass up by half steps.
Listen for: The bass climbs a half step at a time, from the root of the I to the root of the ii.
Gdim7 occurs naturally in A♭ minor: the harmonic minor scale builds it on the leading tone, a half step below Abm.
Played after Gmaj7, Gdim7 can lead into Abmaj7, and so into a new key a half step up. Since any of its notes can act as the leading tone, one diminished chord can lead into four keys.
Alternating Ab6 and Gdim7 is the sixth–diminished sound: the diminished chord is the V7♭9 of Ab6 with its root left out.
Contains Gdim7 and adds second, fourth, sharp fifth and major seventh.
Contains Gdim7 and adds flat second, major third, fifth and flat seventh.
